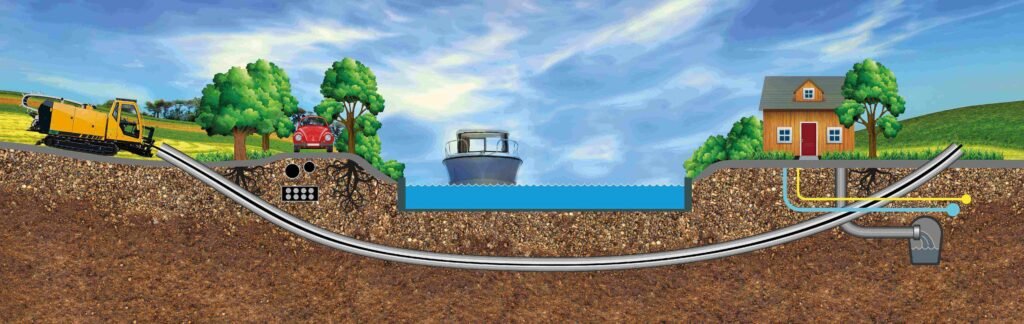

Horizontal Directional Drilling is a modern method used to install underground pipes, cables, and conduits without digging large trenches. It uses advanced drilling technology to create a curved path underground, allowing utilities to pass beneath roads, rivers, buildings, and other obstacles.
This technique is very different from traditional open-cut methods, where the ground is dug up directly along the installation path. Horizontal Directional Drilling offers many advantages over these older methods, especially in terms of efficiency, cost, and environmental impact.
In this article, we will look at the main benefits of using Horizontal Directional Drilling instead of traditional trenching.
1. Minimal Surface Disruption
One of the biggest advantages of Horizontal Directional Drilling is that it causes very little disturbance to the surface. Traditional trenching requires digging a long, open cut along the entire route of the pipe or cable. This can damage roads, sidewalks, landscaping, and natural areas.
With Horizontal Directional Drilling, only small entry and exit points are needed. The drill moves underground along a planned path, leaving most of the surface untouched. This is especially useful in busy urban areas where road closures and construction noise can cause major disruptions.
2. Reduced Environmental Impact
Protecting the environment is an important part of modern construction. Traditional trenching can harm plants, trees, and wildlife habitats, and it can cause soil erosion.
Horizontal Directional Drilling reduces this impact by keeping the surface intact. It allows utilities to pass under rivers, wetlands, and protected land without disturbing the area above. This makes it a preferred method in environmentally sensitive zones.
3. Faster Installation Time
In many cases, Horizontal Directional Drilling can complete a project faster than traditional trenching. Since there is no need to dig and refill a long trench, less time is spent on earthworks and surface restoration.
This speed is especially valuable for projects in high-traffic areas, where delays can cause public inconvenience and economic loss. A faster installation also reduces labor costs.
4. Lower Overall Costs
While the equipment for Horizontal Directional Drilling can be expensive, the total project cost is often lower than traditional methods. This is because there is less need for road repair, landscaping, or utility relocation.
Reduced labor time, fewer traffic control measures, and minimal surface restoration all help lower the total cost. In the long term, the savings can be significant.
5. Ability to Cross Obstacles
Traditional trenching is not practical when you need to cross a river, railway, or busy highway. Closing these routes for digging can be costly, dangerous, or even impossible.
Horizontal Directional Drilling makes it possible to install utilities under these obstacles without disturbing them. The drill can follow a precise underground path that avoids interference with existing structures.
6. Greater Safety for Workers
Open trenches can be dangerous for workers. They may collapse, create fall hazards, or expose workers to traffic. Horizontal Directional Drilling eliminates most of these risks by keeping the work underground and limiting the number of open excavations.
With fewer workers exposed to heavy traffic or deep trenches, the risk of accidents is greatly reduced.
7. Longer Lifespan of Installed Utilities
Horizontal Directional Drilling creates a smooth, controlled path for pipes and cables. This reduces the chance of damage during installation. Since the surface remains undisturbed, the utilities are also less exposed to shifting soil or erosion over time.
In many cases, installations made with Horizontal Directional Drilling last longer and require fewer repairs compared to those installed with open-cut methods.
8. Better Accuracy with Modern Technology
Horizontal Directional Drilling uses advanced guidance systems that allow the operator to control the drill head’s direction and depth. This ensures that the pipe or cable is installed exactly where it needs to be, even over long distances.
Traditional trenching does not offer this same level of precision, and in complex areas, this can make a big difference in avoiding other underground utilities or natural obstacles.
9. Less Traffic Disruption
In urban areas, road closures for trenching can cause traffic jams, delays, and public frustration. Horizontal Directional Drilling avoids this problem by allowing roads to stay open while the installation is happening underground.
Only small work areas at the entry and exit points are needed, which are easier to manage and cause less inconvenience to the public.
10. Suitable for a Wide Range of Materials
Horizontal Directional Drilling can be used to install many types of utilities, including water pipes, sewer lines, gas pipelines, electrical conduits, and communication cables. This flexibility makes it a valuable method for different industries and projects.
It can also handle a variety of pipe materials, from steel to polyethylene, depending on the needs of the project.
11. Works in Different Ground Conditions
Modern Horizontal Directional Drilling equipment can operate in many types of soil, including clay, sand, and even rock. Special drill heads and drilling fluids can be used to handle challenging conditions.
While very hard rock can still be difficult, in most cases HDD offers a reliable method for underground installation without the problems caused by open trenching.
12. Supports Sustainable Construction Goals
Many cities and companies are now committed to sustainable construction practices. Horizontal Directional Drilling supports these goals by reducing waste, protecting landscapes, and lowering emissions from heavy machinery.
Since it often requires fewer trips for transporting soil and less need for heavy excavation equipment, it can help lower the overall carbon footprint of a project.
Final Thoughts
Horizontal Directional Drilling is more than just a modern alternative to traditional trenching. It offers real advantages in speed, safety, cost, and environmental protection.
