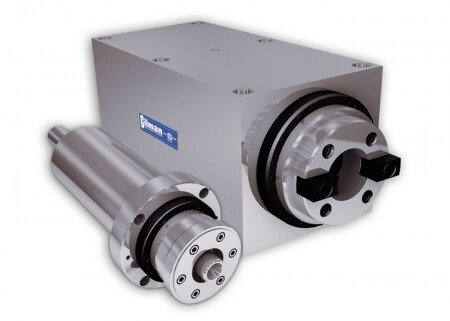

Gilman Precision designs and manufactures belt driven spindles that deliver exceptional versatility, reliability, and accuracy for a wide range of machining applications. Built with advanced engineering and premium materials, these spindles provide a flexible and cost-effective solution for milling, grinding, drilling, and other high-precision manufacturing processes. With customizable pulley ratios and robust bearing systems, Gilman belt driven spindles are engineered to ensure optimal speed, torque, and longevity in demanding industrial environments.
Superior Engineering for Belt Driven Spindles
Versatile Spindle Solutions for All Applications
Belt driven spindles are ideal for machine tools that require adjustable speeds and torque. By simply changing pulley configurations, operators can achieve a wide range of performance characteristics without complex electronic controls. Gilman’s belt driven spindles are engineered for both high-speed and heavy-duty operations, offering a balance of precision, durability, and ease of integration.
Reliable Performance with Minimal Maintenance
Each spindle is designed with precision-ground components, advanced bearings, and effective lubrication systems to minimize wear and extend operational life. Gilman belt driven spindles are built to withstand the toughest machining conditions while maintaining smooth and accurate operation.
Key Features of Gilman Belt Driven Spindles
Adjustable Speed and Torque
Belt-driven systems allow easy adjustment of spindle speed by changing pulley ratios, making these spindles ideal for applications that require different machining parameters.
Precision Bearing Systems
Gilman uses high-quality bearings with carefully controlled preload to provide excellent rigidity, smooth rotation, and long-lasting performance.
Dynamic Balancing for Vibration Control
Every belt driven spindle is dynamically balanced to reduce vibration and improve machining accuracy, resulting in better surface finishes and longer tool life.
Flexible Mounting and Interface Options
Gilman offers various mounting configurations and tool interfaces, allowing seamless integration into existing CNC machines, milling equipment, and automation systems.
Benefits of Belt Driven Spindles
Cost-Effective Solution
Belt driven spindles offer a more economical alternative to direct-drive spindles while still providing excellent machining performance.
Easy Maintenance and Repair
Because the motor is separate from the spindle, maintenance is simpler and less expensive. Belts and pulleys can be replaced without dismantling the entire spindle assembly.
Extended Bearing Life
With proper belt tension and balanced operation, belt driven spindles experience reduced bearing loads, extending service life and reducing downtime.
Versatile Machining Capability
From light finishing work to heavy-duty material removal, Gilman’s belt driven spindles provide the flexibility needed to handle a variety of machining tasks.
Applications of Belt Driven Spindles
CNC Milling Machines
Belt driven spindles provide reliable power transmission for milling machines, enabling precise cutting on metals, plastics, and composite materials.
CNC Grinding Machines
For precision grinding, these spindles offer stable rotation and adjustable speeds to achieve consistent surface finishes and tight tolerances.
CNC Drilling Machines
In drilling applications, belt driven spindles maintain the torque required for accurate hole placement and improved drill bit longevity.
Automation and Robotics
Belt driven spindles integrate seamlessly into automated systems and robotic machining cells, offering versatility for multi-axis machining.
Customization Options for Belt Driven Spindles
Pulley Ratios and Speed Ranges
Gilman customizes pulley sizes and belt types to achieve the desired speed and torque characteristics for specific machining applications.
Bearing Selection
Depending on the load and speed requirements, spindles can be equipped with angular contact, ceramic, or hybrid bearings for optimal performance.
Housing and Mounting Designs
Custom spindle housings, flange mounts, and taper interfaces ensure perfect compatibility with your existing equipment.
Cooling and Lubrication Systems
For continuous operation, spindles can be equipped with air or liquid cooling systems to control temperature and maintain accuracy.
Design and Manufacturing Excellence
Precision Engineering
Each belt driven spindle is engineered using advanced modeling and analysis tools to optimize stiffness, balance, and thermal stability.
High-Quality Materials
Gilman uses premium-grade materials for spindle shafts, housings, and bearings to ensure long-term durability in demanding machining environments.
Rigorous Quality Testing
Before delivery, every spindle undergoes extensive testing for vibration, runout, and thermal performance to guarantee reliable operation.
Maintenance and Support for Belt Driven Spindles
Preventive Maintenance Guidelines
Gilman provides detailed maintenance recommendations, including belt tensioning, lubrication intervals, and alignment checks to maximize spindle life.
Spindle Repair and Rebuild Services
When a spindle requires servicing, Gilman offers expert spindle repair, rebuild, and refurbishment services to restore it to like-new condition.
Technical Support for Long-Term Performance
Gilman’s engineering team provides ongoing technical support to ensure your belt driven spindles continue operating at peak performance.
Advantages of Belt Driven Spindles Over Other Types
Greater Flexibility in Speed Control
Unlike fixed-speed direct-drive spindles, belt-driven designs allow users to easily adjust speed without complex electronics.
Reduced Heat Transfer
Because the motor is separated from the spindle, there is less heat transfer, helping maintain thermal stability and machining accuracy.
Simpler Integration into Machines
Belt driven spindles have fewer electrical requirements, making them easier to integrate into a wide variety of machine tools.
Lower Operating Costs
Belt and pulley components are inexpensive and easy to replace, reducing long-term operating costs compared to other spindle types.
Industries That Rely on Belt Driven Spindles
Aerospace Component Manufacturing
Belt driven spindles deliver the precision and reliability needed for machining complex aerospace parts with strict tolerances.
Automotive Production
Automotive manufacturers use these spindles for engine, transmission, and structural components, benefiting from adjustable speed and torque.
Medical Device Production
Medical equipment manufacturers rely on belt driven spindles for producing intricate surgical tools, implants, and high-precision components.
Industrial Tooling and Equipment
Heavy equipment and tooling manufacturers use belt driven spindles for both rough machining and fine finishing operations.
Why Choose Gilman Belt Driven Spindles
Decades of Motion Control Expertise
With over 70 years of experience, Gilman Precision is a trusted leader in spindle design, engineering, and manufacturing.
Proven Reliability and Quality
Each spindle is built to the highest standards, ensuring consistent performance even in the most demanding industrial environments.
Customization for Any Application
Gilman works closely with customers to design belt driven spindles that meet exact requirements for speed, torque, and mounting configurations.
Complete Lifecycle Support
From design and manufacturing to installation, maintenance, and repair, Gilman supports customers through every stage of their spindle’s lifecycle.
Achieve Superior Machining Performance with Belt Driven Spindles
When your machining operations demand precision, flexibility, and reliability, Gilman Precision delivers belt driven spindles that enhance the performance of your CNC machines and manufacturing equipment. With adjustable speeds, customizable pulley ratios, and durable construction, these spindles provide a cost-effective and versatile solution for a variety of machining applications.
Whether you need a spindle for milling, grinding, drilling, or integrated automation systems, Gilman designs and manufactures belt driven spindles to meet your exact requirements. Backed by decades of expertise, premium materials, and rigorous testing, Gilman ensures every spindle provides long-lasting performance, improved accuracy, and reduced maintenance costs.
