As more homes in Bangalore adopt vertical layouts, in-home elevators have quickly shifted from luxury features to practical essentials. Whether it’s a duplex in Indiranagar, a villa in Whitefield, or a modern townhouse in Sarjapur, homeowners are increasingly including private elevators in their plans. But behind every smooth, silent, and safe elevator lies something far more important than the shaft.
Planning the shaft for home lift Bangalore homes demand is not just about creating a vertical void in the floor plan. It involves precise structural design, technical alignment, and compliance with local building norms. Any error in its dimensions, location, or materials can result in installation delays, unsafe rides, or long-term maintenance issues.
This blog explains the key technical specifications homeowners must understand before constructing a home lift shaft in Bangalore, whether during new builds or renovations.
Why the Shaft Is Critical in Lift Design
The shaft serves as the structural housing for the entire elevator system. It encloses the elevator car, guide rails, cables, electrical wiring, and safety features. For home lifts, where space is often tighter and aesthetics more important, the shaft’s role is both functional and architectural.
In Bangalore, where homes are often built on limited plots and follow strict BBMP guidelines, designing the shaft for home lift Bangalore properties requires smart planning and precision from the foundation stage.
Ideal Dimensions for a Residential Lift Shaft
One of the most important specifications to get right is the shaft size. Too small, and the cabin becomes unusable or fails to pass regulatory inspections. Too large, and valuable space is wasted.
Minimum Recommended Internal Shaft Dimensions:
- Shaft width: 1000 mm to 1500 mm (3.3 to 5 feet)
- Shaft depth: 1000 mm to 1500 mm
- Door opening: 700 mm to 900 mm
- Pit depth: 600 mm to 1000 mm (below ground floor level)
- Overhead clearance: 2400 mm to 3000 mm (above top landing)
These specifications vary based on lift technology. Hydraulic and gearless models typically require less pit and headroom, while traction lifts might demand deeper shafts and more height.
Tip: Always finalize the shaft specs with your lift vendor and architect before breaking ground. Adjusting shaft dimensions after the RCC stage can be costly or structurally risky.
Shaft Orientation and Positioning
Where you place the lift shaft is just as important as how you size it. In Bangalore, where plot dimensions often follow 30×40 or 40×60 formats, lift shafts must be positioned smartly to avoid cutting into liveable space or breaching zoning laws.
Best Practices for Shaft Placement:

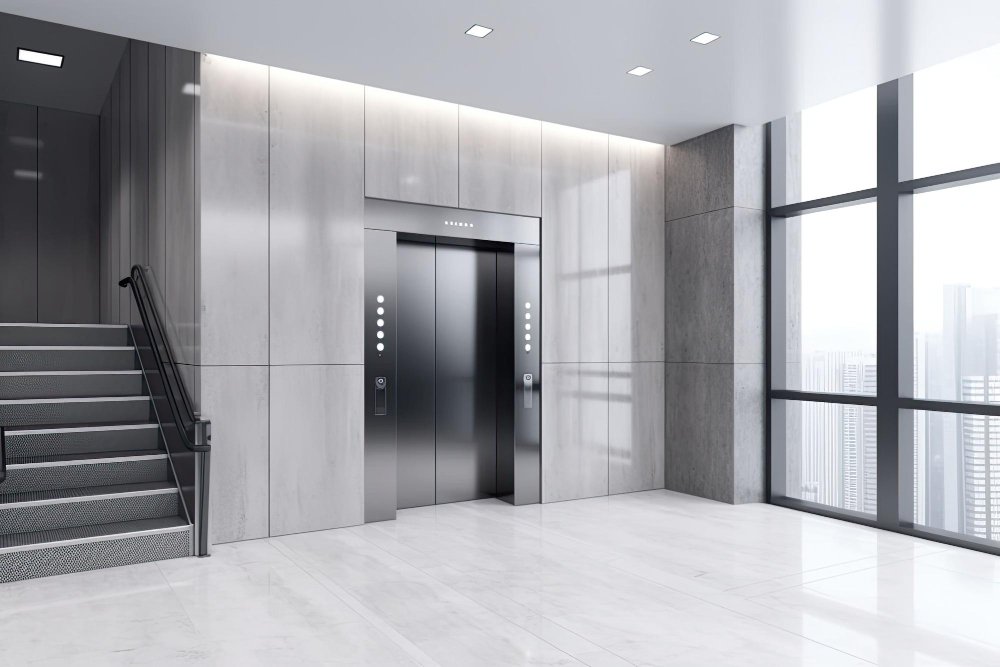

- Alongside staircases: Utilizes vertical space efficiently and supports emergency stair use
- Central location: Minimizes travel distance on each floor and optimizes layout flow
- Near entrances or lobbies: Enhances accessibility, especially for elderly residents
Avoid placing the shaft adjacent to bedrooms or quiet zones unless the shaft is acoustically insulated. Poor shaft placement can create vibration and noise transfer across floors.
Material Choices for the Shaft
Selecting the right material for the shaft for home lift Bangalore homes involves balancing cost, safety, space availability, and aesthetics.
1. RCC (Reinforced Cement Concrete)
- Most durable and fire-resistant
- Integrates seamlessly into new builds
- Ideal for long-term structural reliability
2. Steel Shaft with Cladding
- Lightweight and quicker to install
- Ideal for retrofits or rooftop extensions
- Can be paired with glass, acrylic, or powder-coated panels
3. Glass Shaft Structures
- Used in high-end homes for visual appeal
- Requires laminated or tempered safety glass
- Needs UV protection and heat insulation
No matter the material, ensure the internal walls are smooth and allow for guide rail installation and easy maintenance access.
Pit and Headroom Requirements
Every elevator requires a pit (space below the ground floor level) and headroom (space above the top floor). Ignoring these leads to limited travel height or uncomfortable rides.
Pit Specs:
- Minimum 600 mm depth for most residential lifts
- Some gearless or machine-room-less lifts may work with just 150 mm
Headroom Specs:
- Between 2400 mm and 3000 mm above the top landing
- Needed to accommodate the cabin top, counterweight travel, and suspension system
In case of height restrictions due to building bylaws or design limitations, opt for hydraulic or vacuum lifts that offer flexibility with pit and headroom.
Structural Load and Foundation Considerations
The shaft for home lift Bangalore builders install must be structurally sound to bear:
- Vertical loads from the cabin and motor assembly
- Lateral forces from cabin movement
- Emergency braking or shock absorption impact
Work with a structural engineer to:
- Anchor the shaft directly into the foundation
- Include vertical reinforcements
- Avoid resting the shaft only on intermediate floor slabs
Incorrect structural planning can lead to cracking, misalignment, and serious safety issues over time.
Ventilation, Lighting, and Safety Specs
Many homeowners forget the smaller but essential shaft specs like:
- Ventilation: Prevents overheating of motors and wiring
- Lighting: Mandatory for maintenance or rescue operations
- Fire rating: Use fire-retardant materials for shaft interiors
- Sealed edges: Keeps out dust, insects, and moisture
Ensure a provision for inspection doors or panels to facilitate annual maintenance or emergency evacuation.
Mistakes to Avoid in Shaft Planning
- Planning the lift as an afterthought
- Using random shaft sizes without confirming lift model fitment
- Choosing aesthetics over structural safety
- Failing to provide service access around the shaft
- Skipping waterproofing in the basement or the terrace-level shafts
Each of these can lead to rework costs, compromised safety, or unusable vertical mobility.
Conclusion
Designing the right shaft for home lift Bangalore homes requires more than just allocating vertical space. It demands a holistic understanding of technical requirements, material choices, legal guidelines, and real-world usability.
Homeowners who collaborate early with architects, structural engineers, and certified elevator companies can ensure their shaft is safe, efficient, durable, and visually cohesive. Whether you’re building a luxury villa or a compact duplex, the quality of your elevator ride will depend heavily on how well your shaft is planned.
Remember, a lift is only as good as the structure it moves within. Build it right from the start.
